Unbleached Brown Kraft Linerboard 126g 170g 250g 300g For Packaging
Kraft Linerboard is virgin kraft sheet designed for low-end top or bottom liner used in constructing corrugated material. Available in a wide range of calipers, Kraft Liner Linerboard is designed to provide outstanding package and packaging line efficiency and performance.
Brown Kraft Linerboard Feature:
Kraft Linerboard provides a superior surface that is engineered to deliver excellent converting results and a cleaner running operation, while at the same time providing efficient, reliable performance on manufacturing lines.
• Made from 100% Wood pulp
• Various grammage for your choice
• Recyclable
• Naturally biodegradable
Brown Kraft Linerboard Specification:
| Kraft linerboard |
| Physical Properties | Unit | 175 | 190 | 200 | 230 | 250 | 300 | 337 | 440 |
| Grammage | g/m2 | Target | 175±6 | 190±6 | 200±7 | 230±7 | 250±8 | 300±10 | 337±12 | 440±15 |
| Density | g/m3 | Minimun | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 | 0.70 |
Bursting Index
Strength | Kpa.m2/g
(kgf/cm2) | Minimun | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.3 | 3.1 | 2.8 |
| 6.78 | 7.36 | 7.75 | 8.91 | 9.69 | 10.09 | 10.65 | 12.56 |
| RCT(CD) Strength | N.m/g
(Kgf/152mm) | Minimun | 10.5 | 11.0 | 11.0 | 11.0 | 11.5 | 11.0 | 11.5 | 12.0 |
| 28.49 | 32.40 | 34.11 | 39.22 | 44.57 | 51.16 | 60.09 | 81.86 |
| COBB(top/back) | g/m2 | Maximum | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 | 40/50 |
| Folding Endurance (CD) | 次 Time | Minimun | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Smoothness | S | Minimun | 10 | 10 | 10 | 10 | 10 | 7 | 5 | 4 |
| Internal Bond | J/m2 | Minimun | 160 | 160 | 160 | 160 | 160 | 170 | 170 | 170 |
| Moisture | % | Target | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 | 8±2 |
| Conditions of testing:(Temperature 23±1℃) |
| Relative humidity: 50±2% |
Kraft Linerboard Usage:

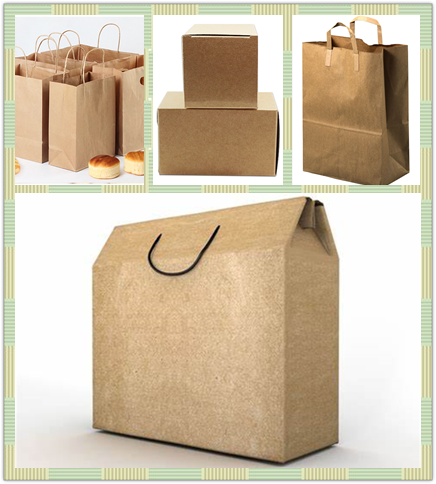

We can manufacture brown kraft paper in different model and quality. It is commonly used for carton packaging, shopping hand bags, product wrapping,and other applications.
Kraft Linerboard Packing:
1. Roll packing: with kraft paper and PE film for waterproof, moistureproof, and reinforce on strong wood pallet.
2. Sheet packing: with kraft paper and PE film for waterproof, moistureproof, and reinforce on strong wood pallet.
3. Sheet packing: with kraft paper and PE film for waterproof, moistureproof, and reinforceon strong wood pallet.
